	I2Cw-32
	ni driver info
	description  I2Cw-32
	contents of I2Cw-32
	license / conditions of use

The vi's also import and or export these new indicators so you don't always have to look them up in data-array's. Just calling the applied vi is sufficient in a lot of cases.
Of course you can expand this functionality if you like, the drivers are freeware.

Where the former version was still using the LabVIEW library structure (llb), I now choose to use a map / submap structure. This way of working prevents loosing all your precious work in a split second when a possible LabVIEW crash occurs. It is also easier to structure since some functions are common for several k800x pcb, and some are specific.

 If you have useful contributions or suggestions; please let me know!

The driver on this page this Velleman 'driver' but written in LabVIEW. It has the same subroutines (vi's) and differs as little as possible.
This way you easily translate your own programs to LabVIEW and if you are familiar with the Velleman drivers, you will have no problem with this one.

I2CW_32 is a full translation of the Velleman I2CW_32.bas module supplied with the K8000.

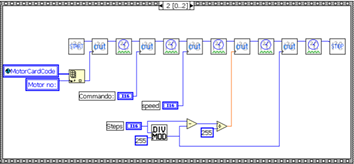

I2CW_32mot is a full translation of the Velleman I2CW_32mot.bas module supplied with the K8005.

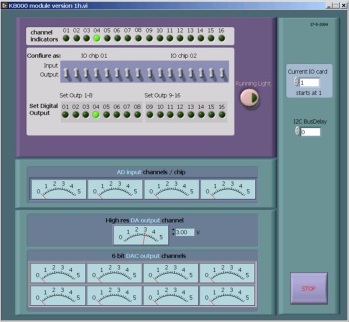

LabVIEW has a few advantages over other programming languages when it comes to process control. It is very easy at handling array and variable structures. That's why I made some changes and added a few vi's that are not in the Velleman package. When changes are made in regular subroutines, they are documented. Some vi's have an extra, they in and export chip control and settings directly. Also a couple of new vi's are added. They contain a 'çhip' amount of IO that you program either I or O in one go.

The drivers for mot are written using LabVIEW 6.02, the drivers for K8000 are written using LabVIEW 7.1, both for use on the Windows  XP Platform.

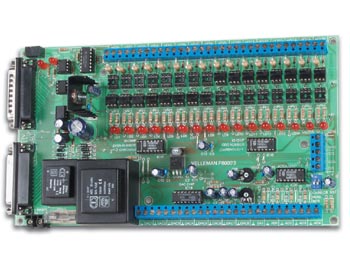

I2CW_32 and I2CW_32mot.llb are  there solely for use together with the Velleman K8000 computer interface board and in combination with the K8005 stepper card.

Since I wanted the software to run on Windows 2000 I had to tackle some extra problems. The parallel port, used by the K8000, is not addressed direct to under W-2000 and W-xp. LabVIEW 6i or 6.02 is standard not capable of writing directly to the parallel port when running Windows 2000 (& NT and XP as far as I know). If you own 6i you can freely upgrade to 6.02 on the ni website. You better do so in this case. I had some difficulty with 6i.

LabVIEW needs the InPort and Outport functions. Check out ni for information if your version of LabVIEW doesn't seem to have them. If you start using the I2CW you will notice that these vi's are already incorporated in I2CW.
Furthermore you'll need some extra driver software from ni that support InPort and OutPort under 2000 and XP.
check ni for them. Again; InPort and OutPort are included in the I2CW_32 and I2CW_32 program. (courtesy of ni Netherlands)

On the NI website you can freely download the updated vi's and drivers needed to solve this problem. The standard vi's needed for I2CW_32 are included in the program so you have less (no) problems integrating them.
You will also need to download AccessHW.zip (for the vi's) and cvirt551.zip (new CVIRTE.DLL) for I2CW_32 and I2CW_32 to function well.

They are available from the NI website Though they are very hard to find on the NI website they are there.

For more information just search at www.ni.com

The newest driver I2CW_32 v2a does not need AccessHW  and cvirt any more. It uses the InPort and Outport that are supplied with LabVIEW 7.1


LabVIEW, with it's own functionality sometimes has standard functionality that is not available in VB.
Some functions, like DecToBin, Shift Bit Left and Invert Binary are more or less standard functions within LabVIEW so you don't really need subroutine's there. Some functions are offered in LabVIEW but behave differently. They still have to be 'simulated'.
People familiar to LabVIEW may easily replace the replaceable subroutines with LabVIEW objects. For people
relatively new to LabVIEW it is probably easier this way.
If you are going to use this program and you find easier ways to accomplish things; go ahead and change what you like.

I have tested all functions, but are not using all of them myself so it is still possible that there are still minor bugs present. If you encounter a problem don't hesitate to contact me.

note that:
It is striking that LabVIEW seems very slow and that the tools supplied in the original VBdriver to slow down the process are not very useful using LabVIEW. LabVIEW is slow enough itself, so the timer setting in the driver will have to be set close to zero otherwise your machine will appear to be stalled.

note that:

LabVIEW on NT based platforms has a strange 'bug' when using while loops. You hàve to slow them down by a 'wait for a (10) millisecond multiple) otherwise your machine will stall. You can easily test this by creating an empty 'while loop' with just a timedelay and an attached control. Start task manager and set the performance tab. When your delay is approaching 0, LabVIEW it is using up all processor time.

** AccessHW.zip and cvirt551.zip are as far as I know by NI and credits go to NI. **
** Credits for I2CW_32.bas of course go to Velleman. **

• I2CW_32 is freeware and others may not charge money for it.
• You may change whatever you like in the I2CW_32 as long as you leave the original zip file unchanged.
• No other files may be added.
• You may not distribute any other new or changed zip with (more or less) the
  same contents as this one as being the same zip file as this one.
• You may freely use this software but I take no responsibility for any damage
  direct or indirect resulting from the use of I2CW_32
• If you find bugs, please let me know so I can then remove them in a later stage and
  incorporate the changes in a possible future version.


  At Honig
  August 02, 2007
